Stand alone equipment
单机设备
Device description
Our fruit and vegetable spray cleaning machine is suitable for all kinds of fresh fruits, vegetables, salted vegetables, fungi, seafood.  The washing machine in the process of conveying, strengthen the function of spray cleaning, before the completion of material after cleaning, after spray cleaning, the function of this procedure is remove dirty on the surface of the material to replace, improve the cleaning effect of material, at the same time, external cleaning spray water after secondary cleaning the supplies, the water flow into the water bath slot,  To replace the cleaning water in the water bath, maintain the cleanliness of the water in the water bath, that is, improve the utilization rate of the cleaning water, and increase the cleaning effect.
working principle
The equipment is composed of mesh belt conveying elevator, spray washing device and collecting tank. The material enters the spray area through the mesh belt conveying elevator for high pressure washing.  High-pressure spray is adopted. The spray pipe installed on the upper end is equipped with high-pressure spray nozzle, and high-pressure water cleaning is carried out under the action of water pump.  Install the filter tank, the overflow mouth, the use of water through the hole on the double inner tank will be impurities into the filter layer, the filter layer and impurities into the circulation tank can be recycled.
technical specification

Fruit and vegetable high pressure spray cleaning machine

Device model JPSW-001

Main material food grade stainless steel plate SUS304(or according to customer requirements)

Processing capacity 0.5 tons/hour to 10 tons/hour (or customized according to customer requirements)

Dimensions 1300*530*800 to 6200*1200*1100 (unit :mm)

The equipment is suitable for cleaning fruit and vegetable raw materials

Applicable scope: fresh fruits, vegetables, salted vegetables, fungi, seafood, etc

Features
It can be used on a single machine or with assembly line operation. Lifting device can also be added upon request.
Medium water can be filtered and recycled, with high cleaning efficiency, practicability and energy saving.
Cleaning machine adopts high pressure water bubble water bath cleaning, does not damage the material. After spraying and cleaning, lift and transport to the next process.
Can be customized according to the user's respective processing characteristics, to a great extent to meet the process requirements.
The main body of the equipment is made of SUS304 stainless steel, which has good cleaning effect and can keep the original color of fruit and vegetable products.

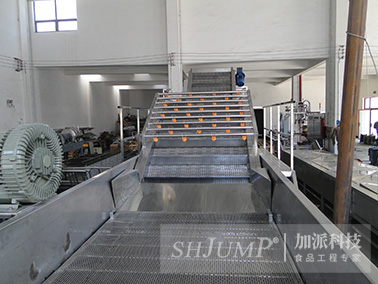

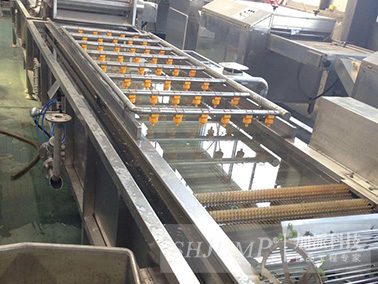

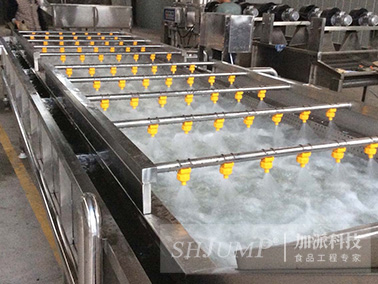

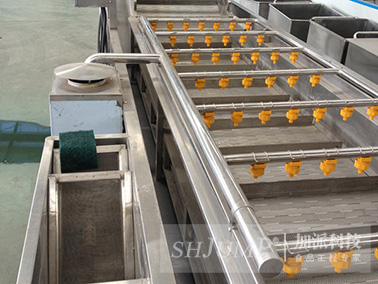

Finished product display
