Device description
Thermal insulation tank has the advantages of energy saving, noise elimination, corrosion resistance, strong production capacity, convenient cleaning, widely used in dairy industry, food, pharmaceutical, chemical, beverage and other industrial sectors, as heating, heat preservation, sterilization treatment or storage of liquid water must be equipment, especially suitable for liquid water pasteurization sterilization and heat preservation.
working principle

When working, open the hot water inlet valve, start the hot water pump, the hot water is discharged from the overflow port (can be recycled) and start the stirring motor, constantly stirring materials to achieve thermal insulation effect.  Through the jacket to maintain the temperature of the material in the cylinder.

Cold or hot water (pay attention to the thermometer), in order to achieve the purpose of insulation.

parameter of apparatus
型号 JP-B JP-B JP-B JP-B JP-B
600 1000 1200 1500 2000
类别 容器内
容器内 设计压力(MPa) 常压
设计温度(℃) 15~126
试验压力(MPa) 常压
主要材料 1Cr18Ni9Ti
容积(L) 600 1000 1200 1500 2000
夹套内 内径(mm) 1000 1100 1200 1300 1500
设计压力(MPa) 0.4
设计温度(℃) 142
试验压力(Mpa) 0.6
主要材料 1Cr18Ni9Ti
贮存介质 水、蒸汽
电动机功率(KW) 0.4 0.75 1.1 1.75 2.2
外形尺寸 1500×1150×1700 1620×1280×1800 1650×1300×2000 1750×1550×2200 1850×1650×2400
重量(Kg) 550 725 800 850 1000
Features

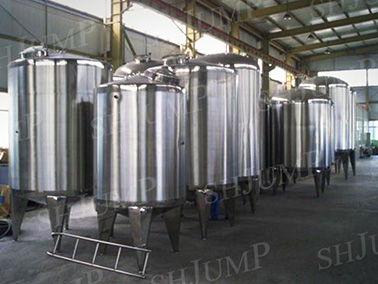

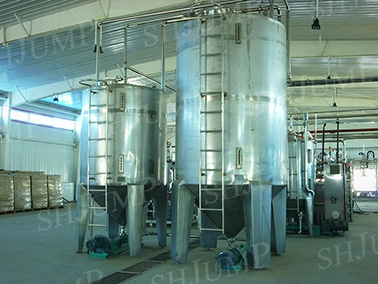

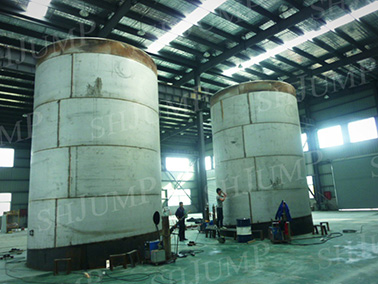

Finished product display
