Stand alone equipment
单机设备
Device description
High pressure homogenizer rely on three repeated movement of the plunger and produce great pressure, when the plunger movement back, feed valve opens, the material suction, when the piston to move forward, the valve is closed, the valve is open, the material is pressed into the area of high pressure homogenizing valve, through a, level 2 homogeneous valve homogeneous, emulsification, material go through the discharge port.  The device adopts the stainless steel system, due to the sample surface can be separated effectively and be included microbial flat samples, the samples in a sterile homogeneous bag, don't contact with the instrument, with homogeneous soft samples, no pollution, no damage, no heat, no need to sterilization, do not need to wash the dishes, meet the rapid, accurate and good repeatability.
working principle

The working principle of

High pressure homogenizer is a special equipment for liquid material homogenization and high pressure transportation.  For homogeneous emulsification of liquids (liquid-liquid or liquid-solid) with viscosity below 0.2Pa.s and temperature below 85 ° C.  The device pulverizes particles and oil droplets in the liquid into very small sizes through the combined effects of pressure loss, expansion, explosion, shear and high-speed impact during an adjustable flow limiting gap, while creating ideal emulsions and dispersions.  It is a set of ultrasonic grinder, colloid mill, ball mill, jet machine and other functional principles in one.  The stability, consistency, mixture, absorbability, nutrition, shelf life, taste, color and protection of the product can be achieved in homogeneity.


technical parameters

Model specifications Flow (L/H) Maximum working pressure (Mpa) Working pressure (Mpa) Weight (㎏) Shape ruler (cm) Power (kW)

Jp-gjb5000-20 5000 20 0~16 1500 130×125×150 37

Jp-gjb2000-25 2000 25 0~20 1150 120×105×140 15/18.5

Jp-gjb2500-25 250 250 ~20 250 130×106×145 22

Jp-gjb3000-25 3000 25 0~20 1350 130×110×145 22/30

Jp-gjb4000-25 4000 25 0~20 1400 130×125×150 37

Jp-gjb2000-30 2000 30 0~24 1350 130×125×145 22

Jp-gjb1000-40 1000 40 0~32 1200 120×105×140 15

Jp-gjb1500-40 1500 40 0~32 1350 130×120×145 22

Jp-gjb2000-40 2000 400 ~32 1400 130×120×145 30

Jp-gjb2500-40 2500-40 0~32 1500 130×125×150 37

Jp-gjb1000-60 1000 60 0~48 1350 130×120×145 22

Jp-gjb1500-60 1500 60 0~48 1500 130×125×150 30

Jp-gjb1000-80 1000 80 0~64 1500 130×125×150 30

Jp-gjb5000-25 5000 25 0~20 2000 210×110×105 45

Jp-gjb6000-25 6000 250 ~20 2450 250×130×110 55

Jp-gjb7000-25 7000 250 ~20 2550 250×130×110 65

Features
High shear homogenizer can fully realize the dispersion, emulsification, homogenization, dissolution and reaction of various viscosity materials, so that you can be handy in production
All surfaces in contact with materials are made of special acid-proof stainless steel. The hygienic design is also reflected in the use of cleaning agent circulation and water purification for in-situ cleaning
Used in the production of milk, glue, juice, slurry and so on, it can prevent or reduce the layering of the material liquid, improve the appearance of the material liquid, make it more colorful, more fragrant, more mellow taste
Homogenization of milk, soybean milk and other milk liquids under high pressure can significantly refine the fat globules in milk liquids, so that the products can be easily digested and absorbed after eating, and improve the edible value
The high pressure homogenizing function makes the material liquid refined and mixed under the triple action of extrusion and grinding, strong impact on the loss of pressure expansion, this equipment is an important equipment for the process of food, dairy products, drinks and so on

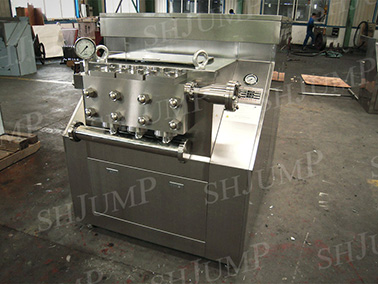

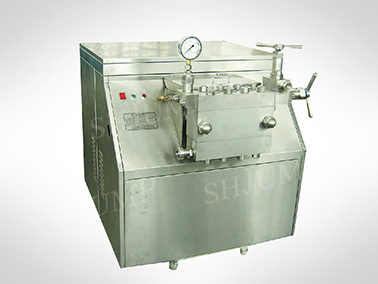

Finished product display
