Sanitary centrifugal pump

Device description working principle technical parameters Features Finished product

Device description

Health centrifugal pump health food centrifugal pump is a single suction, single stage, centrifugal pump, suitable for conveying milk, drinks, wine and other liquids, is food, chemical, pharmaceutical and other industries indispensable transportation equipment. The maximum suction temperature is about 80 ºC. The high lift pump is especially suitable for tubular sterilization, yogurt temperature holding equipment, CIP cleaning and other large resistance system application.

working principle

Centrifugal pump is mainly composed of pump body, pump seat and motor part. Each part is connected by bolt separately. The support foot under the bottom plate can be adjusted arbitrarily, easy to install, without a fixed installation foundation. The outlet pipe can be installed in vertical or horizontal direction according to different needs. The impeller is located in the pump housing, which rotates in conjunction with the pump shaft, and the impeller blade transmits energy to the fluid in the form of kinetic energy and pressure energy.

technical parameters

Sanitary grade centrifugal pump

Device model JPCP-100

Main material food grade SUS304 high quality stainless steel (or according to customer requirements)

Processing capacity from 1 t/h to 30 t/h (or customized according to customer requirements)

Dimensions 550*300*300 to 1350*600*800 (mm)

The equipment is suitable for conveying milk, drink, wine and other liquids

Applicable scope fruit juice drinks, milk, beer, liquor, fermentation liquid and so on

Features

This series pump is simple in structure, easy to disassemble, low in voice, high in efficiency, gentle and gentle in material processing, in line with food hygiene requirements and ensure the original flavor of the product

This series pump is made fine, not easy to scale, especially suitable for CIP cleaning

The shaft seal adopts open structure, so even if there is a small amount of leakage at the shaft seal, it can be observed in time. Even if not detected in a short period of time will not overflow to the motor. Thus, the service life of the motor is guaranteed

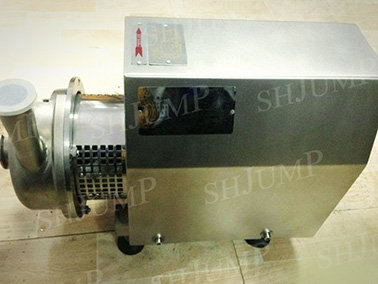

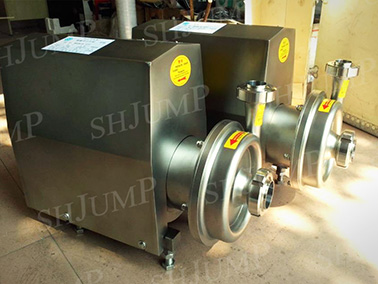

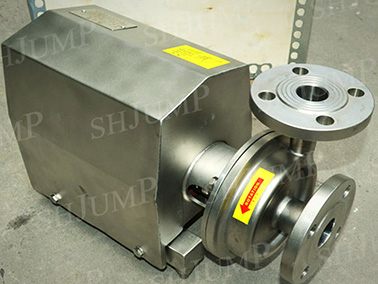

Finished product display
